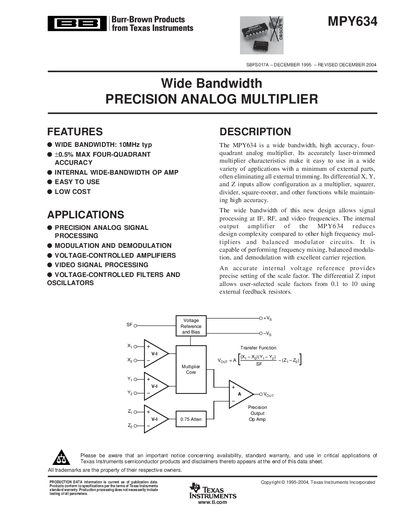

The MPY634 is a wide bandwidth, high accuracy, four- quadrant analog multiplier manufactured by Texas Instruments. It has wide bandwidth, high accuracy, easy to use, low cost, etc. It can be used for a variety of precision analog signal processing, modulation and demodulation, voltage-controlled amplifiers, video signal processing, etc.
The MPY634 analog multiplier offers a 10 MHz typical bandwidth and 40.5 % maximum four‑quadrant accuracy. It features differential X, Y, and Z inputs that allow configuration as a multiplier, squarer, divider, or square‑rooter, with an internal wide‑bandwidth op‑amp and low‑cost design.
The device is supplied at +15 V (operable down to +8 V) and draws 4–6 mA quiescent current. It is available in 14‑pin PDIP (MPY634KP) and 16‑pin SOIC (MPY634KU) packages, and supports scale‑factor adjustment from 0.1 to 10 via external resistors.
| Typical Bandwidth | 10 MHz |
|---|---|
| Four‑Quadrant Accuracy (max) | 40.5 % |
The MPY634 has a typical bandwidth of 10 MHz.
It is rated for +15 V supply but can operate down to +8 V, with reduced input and output range.
The scale factor can be set from 0.1 to 10 using external feedback resistors.
It is offered in a 14‑pin PDIP (MPY634KP) and a 16‑pin SOIC (MPY634KU) package.
