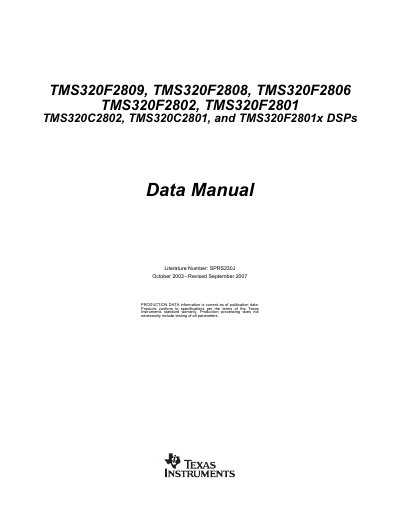

This manual describes the features, functions, and applications of the TMS320F2809, TMS320F2808, TMS320F2806, TMS320F2802, TMS320F2801, TMS320C2802, TMS320C2801, and TMS320F2801x DSPs.
The TMS320F280x series data manual provides detailed information on the DSP family, including hardware features, pin assignments, signal descriptions, functional overview, memory maps and peripheral blocks. It also contains electrical specifications, timing parameters, and mechanical drawings for the various package types.
The document includes revision history, absolute maximum ratings, recommended operating conditions, and guidelines for power management, low‑power modes, and peripheral configuration. It is intended for designers and developers working with the TMS320F2809, F2808, F2806, F2802, F2801, C2802, C2801 and F2801x devices.
| Supply voltage range (VDDIO, VDD3VFL) | 0.3 V to 4.6 V |
|---|---|
| Supply voltage range (VDD, VDD1A18, VDD2A18) | 0.3 V to 2.5 V |
| Junction temperature range | -40 °C to 150 °C |
