HCF4007UB is a bipolar symmetric output switch, which can be used in various circuits.

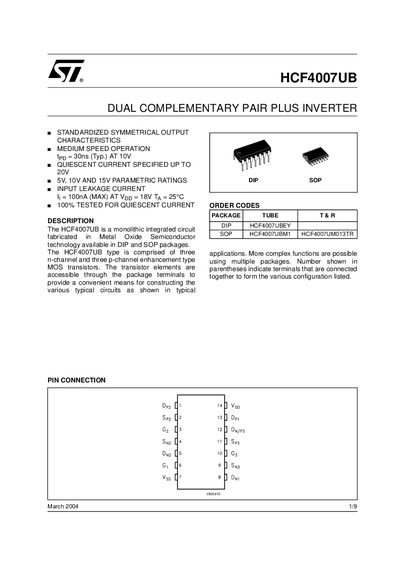

The HCF4007UB is a monolithic integrated circuit fabricated in MOS technology, available in DIP and SOP packages. It contains three n‑channel and three p‑channel enhancement MOS transistors and is used for building various logic functions.
The document provides pin descriptions, absolute maximum ratings, recommended operating conditions, DC specifications, typical applications, mechanical dimensions, and legal information for the device.
| Supply Voltage (absolute max) | -0.5 to +22 V |
|---|---|
| DC Input Current (absolute max) | +10 mA |
| Power Dissipation per Package | 200 mW |
| Operating Temperature (recommended) | -55 to +125 °C |
| Storage Temperature (recommended) | -65 to +150 °C |
| Quiescent Current (typical) | 0.01 µA |
| Input Leakage Current | 100 nA (max) at Vpp = 18 V |
The recommended supply voltage (Vop) is 3 to 20 V.
The device can tolerate a supply voltage from –0.5 to +22 V.
Typical propagation delay at 5 V is 55 ns.
Input leakage current is limited to 100 nA (max) at Vpp = 18 V.
