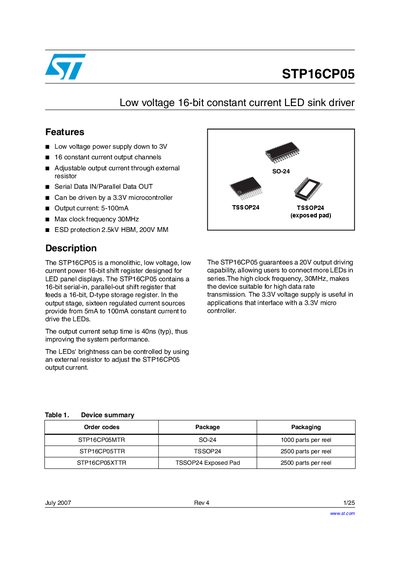

STP16CP05 is a low voltage 16-bit constant current LED sink driver from ST. It has features like low voltage power supply, 16 channels of constant current output, adjustable output current, can be driven by a 3.3V microcontroller, output current range 5-100mA, max clock frequency 30MHz, ESD protection 2.5kV HBM, 200V MM.
The STP16CP05 is a monolithic, low‑voltage LED driver that provides sixteen constant‑current output channels. Each channel can be programmed from 5 mA to 100 mA using an external resistor, and the device operates from a 3 V to 5.5 V supply. It features a high‑speed 30 MHz serial‑in, parallel‑out shift register and ESD protection of 2.5 kV HBM/200 V MM.
Key specifications include a 20 V output capability, operating temperature range of –40 °C to +125 °C, and a TSSOP24 package (exposed pad). The datasheet provides detailed pin descriptions, electrical ratings, timing diagrams, and recommended operating conditions for designers.
| Supply voltage (Vpp) | 3.0 V – 5.5 V |
|---|---|
| Output current range | 5 mA – 100 mA |
| Maximum clock frequency | 30 MHz |
| Number of channels | 16 constant‑current channels |
| Package type | TSSOP24 (exposed pad) |
| Operating temperature range | -40 °C to +125 °C |
| ESD protection | 2.5 kV HBM, 200 V MM |
| Maximum output voltage | 20 V |
The device operates from 3.0 V to 5.5 V supply voltage.
It provides sixteen constant‑current output channels.
The maximum clock frequency is 30 MHz.
It can operate from –40 °C to +125 °C.
