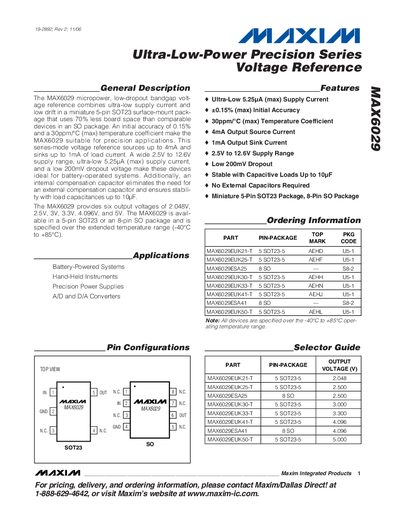

The MAX6029 is a micropower, low-dropout bandgap voltage reference. It combines ultra-low supply current and low drift in a miniature 5-pin SOT23 surface-mount package that uses 70% less board space than comparable devices in an SO package. With an initial accuracy of 0.15% and a 30ppm/°C (max) temperature coefficient, the MAX6029 is suitable for precision applications. This series-mode voltage reference sources up to 4mA and sinks up to 1mA of load current. It has a wide 2.5V to 12.6V supply range, ultra-low 5.25µA (max) supply current, and a low 200mV dropout voltage, making it ideal for battery-operated systems. Additionally, an internal compensation capacitor eliminates the need for an external compensation capacitor and ensures stability with load capacitances up to 10µF. The MAX6029 provides six output voltages of 2.048V, 2.5V, 3V, 3.3V, 4.096V, and 5V. The MAX6029 is available in a 5-pin SOT23 or an 8-pin SO package and is specified over the extended temperature range (-40°C to +85°C).
The MAX6029 is a micropower, low‑dropout bandgap voltage reference that combines ultra‑low supply current with low drift in a compact 5‑pin SOT‑23 or 8‑pin SO package. It provides six fixed output voltages (2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 5 V) and operates over a wide supply range of 2.5 V to 12.6 V.
Typical applications include battery‑powered systems, hand‑held instruments, precision power supplies and data‑converter reference circuits. The device features internal compensation, eliminating the need for external capacitors, and remains stable with load capacitances up to 10 µF.
| Supply Current (I_IN) max | 5.25 µA |
|---|---|
| Output Voltage Options | 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 5 V |
| Temperature Coefficient | 30 ppm/°C (max) |
| Dropout Voltage | 200 mV |
| Output Source Current | 4 mA |
| Output Sink Current | 1 mA |
| Supply Voltage Range | 2.5 V to 12.6 V |
| Operating Temperature Range | -40 °C to +85 °C |
The MAX6029 draws a maximum supply current of 5.25 µA.
The device is offered with six fixed outputs: 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, and 5 V.
Its temperature coefficient is specified as 30 ppm/°C (max).
The dropout voltage is 200 mV.
