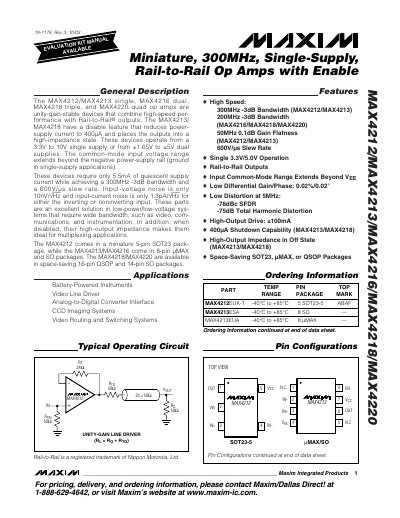

MAX4212/MAX4213 single, MAX4216 dual, MAX4218 triple, and MAX4220 quad op amps are unity-gain-stable devices that combine high-speed per- formance with Rail-to-Rail® outputs. The MAX4213/ MAX4218 have a disable feature that reduces power- supply current to 400µA and places the outputs into a high-impedance state. These devices operate from a 3.3V to 10V single supply or from ±1.65V to ±5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications). These devices require only 5.5mA of quiescent supply current while achieving a 300MHz -3dB bandwidth and a 600V/µs slew rate. Input-voltage noise is only 10nV/√Hz and input-current noise is only 1.3pA/√Hz for either the inverting or noninverting input. These parts are an excellent solution in low-power/low-voltage sys- tems that require wide bandwidth, such as video, com- munications, and instrumentation. In addition, when disabled, their high-output impedance makes them ideal for multiplexing applications. The MAX4212 comes in a miniature 5-pin SOT23 pack- age, while the MAX4213/MAX4216 come in 8-pin µMAX and SO packages. The MAX4218/MAX4220 are available in space-saving 16-pin QSOP and 14-pin SO packages.
The MAX4212, MAX4213, MAX4216, MAX4218 and MAX4220 are single‑supply, rail‑to‑rail voltage‑feedback amplifiers with bandwidths up to 300 MHz and slew rates of 600 V/µs. They operate from 3.3 V to 10 V single‑supply or ±1.65 V to ±5 V dual supplies and feature a disable mode that reduces supply current to 400 µA.
The document provides absolute maximum ratings, DC and AC electrical characteristics, typical operating curves, pin descriptions, package information and recommended layout and bypassing guidelines for designers.
| Bandwidth (−3 dB) | 300 MHz (MAX4212/4213) |
|---|---|
| Slew Rate | 600 V/µs |
| Supply Voltage Range | 3.3 V to 10 V (single) or ±1.65 V to ±5 V (dual) |
| Quiescent Supply Current (per amp) | 5.5 mA (typical) |
| Shutdown Current (EN = 0) | 400 µA |
| Output Drive Capability | ±100 mA |
| Input Voltage Noise Density | 10 nV/√Hz |
| Input Current Noise Density | 1.3 pA/√Hz |
The device reduces its supply current to 400 µA in the disabled state.
The MAX4212 provides a –3 dB bandwidth of 300 MHz.
They operate from 3.3 V to 10 V single‑supply or from ±1.65 V to ±5 V dual‑supply.
They can source or sink up to ±100 mA of output current.
