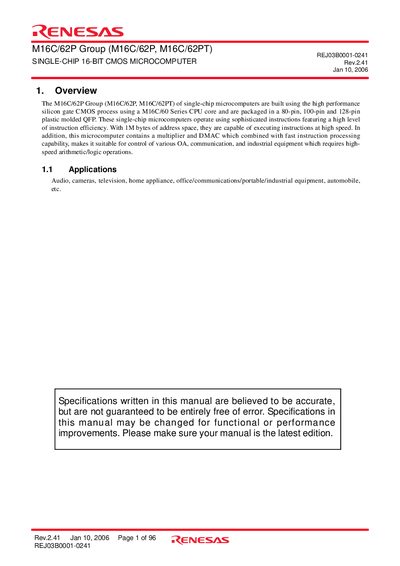

M16C/62P Group (M16C/62P, M16C/62PT) of single-chip microcomputers are built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high- speed arithmetic/logic operations.
The manual provides an overview of the M16C/62P group microcontrollers, describing their 16‑bit CMOS core, instruction set, and typical applications such as audio, cameras, home appliances, and industrial equipment. It includes performance outlines, electrical characteristics, and power consumption data for the 80‑pin, 100‑pin, and 128‑pin packages.
Detailed sections present block diagrams, peripheral functions (timers, A/D, D/A, DMAC, UART, I2C, IEBus), product part number tables, flash‑memory versions, and revision history. Safety and legal notices from Renesas Technology Corp. conclude the document.
| Number of Basic Instructions | 91 instructions |
|---|---|
| Minimum Instruction Execution Time | 41.7 ns (BCLK=24 MHz, VCC1=3.3‑5.5 V) |
| Address Space | 1 Mbyte (expandable to 4 Mbytes) |
| Power Consumption (5 V, 24 MHz) | 14 mA |
| Operating Voltage Range | VCC1 3.0‑5.5 V, VCC2 2.7‑5.5 V |
The M16C/62P provides a 1 Mbyte address space, which can be expanded to up to 4 Mbytes with memory‑space expansion.
The CPU core implements 91 basic instructions.
The minimum execution time is 41.7 ns when the bus clock is 24 MHz and VCC1 is between 3.3 V and 5.5 V.
Typical power consumption is 14 mA under those conditions.
