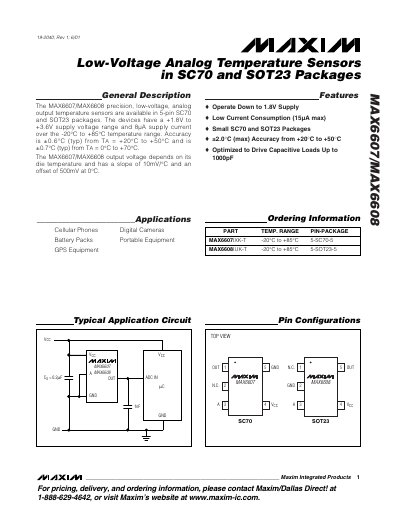

MAX6607/MAX6608 are low-voltage, precision, analog output temperature sensors from Maxim in 5-pin SC70 and SOT23 packages. The devices have a +1.8V to +3.6V supply voltage range and 8µA supply current over the -20°C to +85°C temperature range. Accuracy is ±0.6°C (typ) from TA = +20°C to +50°C and is ±0.7°C (typ) from TA = 0°C to +70°C. The MAX6607/MAX6608 output voltage depends on its die temperature and has a slope of 10mV/°C and an offset of 500mV at 0°C.
The MAX6607 and MAX6608 are precision, low‑voltage analog temperature sensors offered in 5‑pin SC70 and SOT23 packages. They provide a linear output voltage with a 10 mV/°C slope and a 500 mV offset at 0 °C, suitable for measuring die, board, or ambient temperatures in portable equipment.
Key features include operation from +1.8 V to +3.6 V supply, low supply current (8 µA no‑load, up to 15 µA typical), ±0.6 °C typical accuracy from +20 °C to +50 °C, and the ability to drive capacitive loads up to 1000 pF.
| Supply Voltage Range | +1.8 V to +3.6 V |
|---|---|
| Output Voltage Slope | 10 mV/°C |
| Output Voltage Offset | 500 mV at 0 °C |
| Typical Accuracy | ±0.6 °C (typ) from +20 °C to +50 °C |
| Maximum Capacitive Load | 1000 pF |
| Operating Temperature Range | -55 °C to +125 °C |
They operate from +1.8 V to +3.6 V.
The output voltage changes linearly with temperature at a slope of 10 mV/°C and includes a 500 mV offset at 0 °C.
Typical accuracy is ±0.6 °C between +20 °C and +50 °C.
