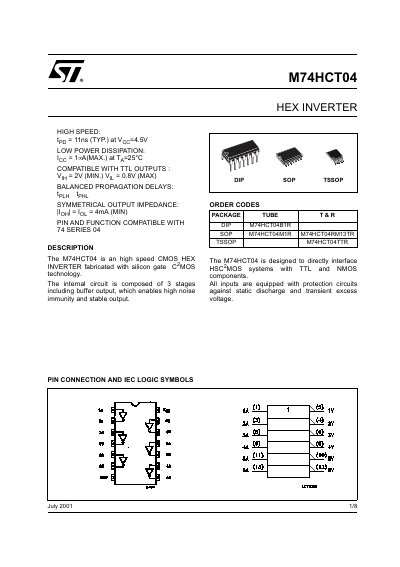

M74HCT04 is a high speed CMOS HEX INVERTER fabricated with silicon gate C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. The M74HCT04 is designed to directly interface HSC2MOS systems with TTL and NMOS components. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
The M74HCT04 is a high‑speed CMOS hex inverter fabricated with silicon‑gate C2MOS technology. It offers TTL‑compatible input thresholds (VIH = 2 V, VIL = 0.8 V) and symmetrical output impedance, making it suitable for interfacing HSC2MOS systems with TTL and NMOS components. All inputs include protection against static discharge and transient over‑voltage.
The device operates from a 4.5 V to 5.5 V supply, dissipates up to 500 mW at 65 °C, and provides typical propagation delays of 11 ns. Detailed electrical characteristics, mechanical dimensions for DIP‑14, SOP, TSSOP and SO‑14 packages, and test circuit information are included.
| Typical Propagation Delay (tPD) | 11 ns |
|---|---|
| Supply Voltage (VCC) | 4.5 V – 5.5 V |
| Power Dissipation (PD) | 500 mW |
The typical propagation delay is 11 ns.
It operates from 4.5 V to 5.5 V.
The device can dissipate up to 500 mW at 65 °C.
