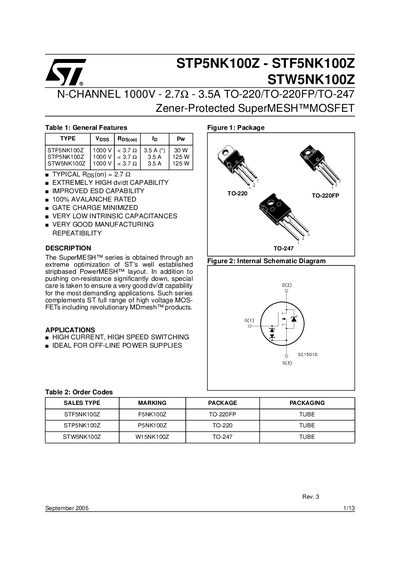

This document provides a detailed introduction of STP5NK100Z-STF5NK100Z-STW5NK100Z products, including general features, applications, order codes, package, absolute maximum ratings and other information.
The SuperMESH™ series MOSFETs from STMicroelectronics provide 1000 V rating, low on‑resistance and high dv/dt capability for demanding high‑current, high‑speed switching applications such as offline power supplies. The devices are offered in TO‑220, TO‑220FP and TO‑247 packages and feature built‑in gate‑source Zener diodes for enhanced ESD protection.
Key specifications include a continuous drain current of 3.5 A, total power dissipation up to 125 W (TO‑247) and avalanche‑rated operation with a 3.5 A repetitive avalanche current. The datasheet also provides thermal impedance curves, safe operating area charts, and ECOPACK® environmental compliance information.
| Drain‑source Voltage (VDS) | 1000 V |
|---|---|
| Avalanche Current (IAval) | 3.5 A |
The devices are rated for a maximum drain‑source voltage of 1000 V.
