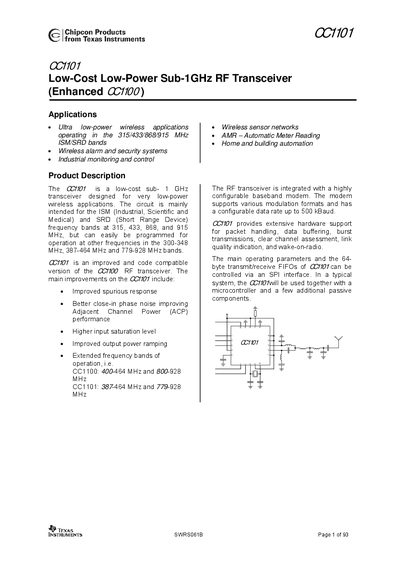

The CC1101 is a low-cost sub-1GHz transceiver designed for very low-power wireless applications.
The CC1101 transceiver is designed for ultra‑low‑power wireless applications in the 315/433/868/915 MHz ISM/SRD bands, such as alarm systems, industrial monitoring, sensor networks and home automation. It integrates a configurable baseband modem with SPI control, allowing easy integration with microcontrollers.
Key features include high sensitivity, programmable output power up to +10 dBm, a wide selectable frequency range, low current consumption (14.7 mA in RX, 400 nA in sleep), and extensive packet‑handling hardware. The device is offered in a compact QLP 4×4 mm, 20‑pin package and complies with EN 300 220 and FCC Part 15 regulations.
| Frequency range | 300‑348 MHz, 387‑464 MHz, 779‑928 MHz |
|---|---|
| Maximum data rate | 500 kBaud |
| Sensitivity | -111 dBm at 1.2 kBaud, 868 MHz |
| RX current consumption | 14.7 mA (1.2 kBaud, 868 MHz) |
| Sleep mode current | 400 nA |
| Output power | Up to +10 dBm |
| Supply voltage | 0.3 V – 3.9 V |
| Package | QLP 4×4 mm, 20 pins |
| TX current at +10 dBm | 27.4 mA |
It operates in three bands: 300‑348 MHz, 387‑464 MHz and 779‑928 MHz.
The device can be programmed for data rates up to 500 kBaud.
Its sensitivity reaches –111 dBm at 1.2 kBaud on 868 MHz.
In sleep mode the CC1101 draws only about 400 nA.
