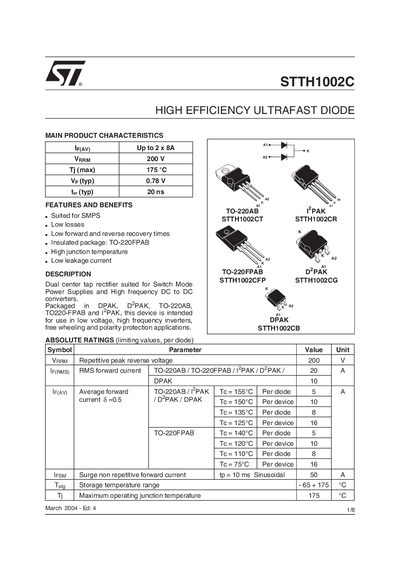

The datasheet is for the STTH1002C. The product features include low loss, low forward and reverse recovery time, high junction temperature and low leakage current.
The STTH1002C ultrafast diode is designed for switch‑mode power supplies and high‑frequency DC‑DC converters. It features low losses, fast recovery times, and an insulated TO‑220FPAB package, making it suitable for low‑voltage inverters, free‑wheeling and polarity‑protection applications.
The datasheet provides key parameters such as a 200 V reverse voltage rating, 20 A RMS forward current, typical forward voltage drop of 0.78 V at 5 A, and a maximum junction temperature of 175 °C. Mechanical data for DPAK, D2PAK, TO‑220AB, TO‑220FPAB and I2PAK packages are also listed.
| Repetitive peak reverse voltage (VRRM) | 200 V |
|---|---|
| Maximum junction temperature (Tj max) | 175 °C |
The diode is rated for a repetitive peak reverse voltage of 200 V.
It is offered in DPAK, D2PAK, TO‑220AB, TO‑220FPAB, and I2PAK packages.
The maximum junction temperature is 175 °C.
