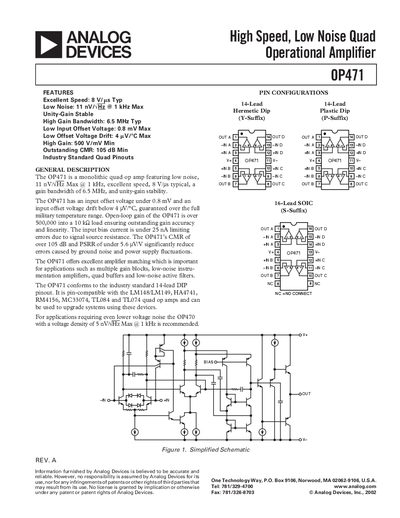

The document describes the features and characteristics of the Analog Devices OP471, a high-speed, low-noise quad operational amplifier. It includes excellent speed, low noise, high gain bandwidth, low input offset voltage and drift, and more.
The OP471 is a high‑speed, low‑noise quad operational amplifier from Analog Devices. It offers a typical slew rate of 8 V/µs, a gain‑bandwidth product of 6.5 MHz, and unity‑gain stability, making it suitable for low‑noise instrumentation, quad buffers, and active filters.
The document provides full electrical characteristics, absolute maximum ratings, pin configuration diagrams for 14‑lead DIP and 16‑lead SOIC packages, ordering information, and application notes on noise performance and source resistance effects.
