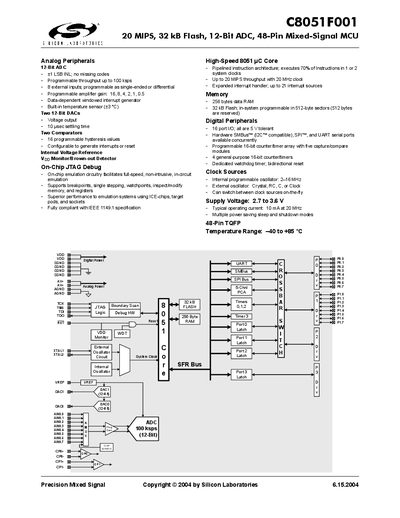

C8051F001 is a 20MIPS, 32kB Flash, 12-Bit ADC, 48-Pin Mixed-Signal MCU by Silicon Laboratories.
The C8051F001 is a 48‑pin mixed‑signal microcontroller featuring a high‑speed 8051 core capable of up to 20 MIPS, 32 kB Flash memory, 256 bytes of RAM, and a 12‑bit ADC with programmable throughput up to 100 ksps. It includes two 12‑bit DACs, two comparators, an internal voltage reference, and a full‑speed on‑chip JTAG debug interface.
The device operates from 2.7 V to 3.6 V, draws a typical 10 mA at 20 MHz, and supports a temperature range of –40 °C to +85 °C. It provides a variety of digital peripherals such as 16‑port I/O, SMBus/I²C, SPI, UART, programmable counters, and multiple clock source options.
| CPU speed | 20 MIPS at 20 MHz |
|---|---|
| Flash memory | 32 kB |
| ADC resolution | 12‑bit |
| Supply voltage | 2.7 V to 3.6 V |
| Operating temperature range | ‑40 °C to +85 °C |
| Typical operating current | 10 mA at 20 MHz |
The C8051F001 includes a 12‑bit analog‑to‑digital converter.
It provides 32 kB of on‑chip flash memory.
Typical operating current is about 10 mA when running at 20 MHz.
The device operates from –40 °C up to +85 °C.
