The document describes the features and characteristics of a product called N68C-GS UCC. The product is a motherboard that supports AMD Athlon 64 X2 dual-core processors, with 256KB of L1 cache and 2048KB of L2 cache. It supports a maximum of 1024MB of memory and uses single-channel memory mode. The product also features BIOS setup utility and security functions.

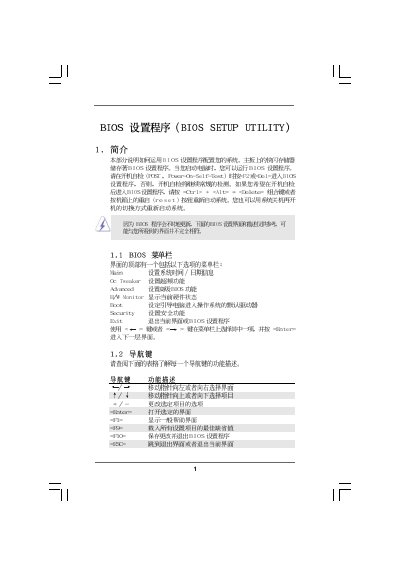

This manual provides a walkthrough of the BIOS Setup Utility for the American Megatrends N68C‑GS and N68C‑S motherboards. It covers the main menu, overclocking (OC Tweaker), hardware monitoring, boot options, security settings, and advanced configuration screens.
The document includes step‑by‑step instructions for changing system time, configuring CPU and memory parameters, enabling/disabling hardware features, setting passwords, and viewing health metrics such as CPU temperature and fan speeds.
| BIOS Version | v02.54 |
|---|---|
| Memory Mode | Single‑Channel |
| DDR2 Frequency | 266 MHz (DDR2‑533) |
Press F9 to load defaults, then press F10 to save and exit.
Go to Security Settings, select Change Supervisor Password, and follow the prompts.
Open the Hardware Health Event Monitoring screen to see CPU temperature, fan speeds, and voltage readings.
In the Advanced menu, locate CPU Quiet Fan and set it to Enabled or Disabled as needed.
