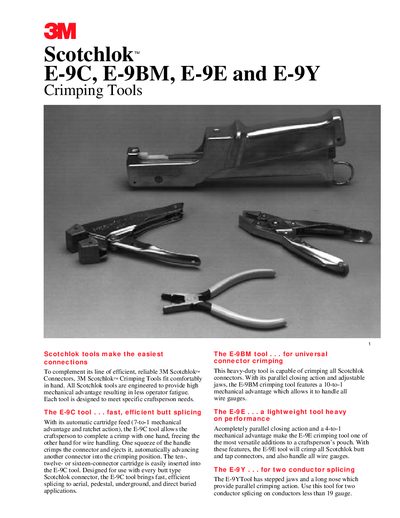

3M Scotchlok™ E-9C, E-9BM, E-9E and E-9Y Crimping Tools are designed to make the easiest connections. They are engineered to provide high mechanical advantage resulting in less operator fatigue. Each tool is designed to meet specific craftsperson needs. The E-9C tool is designed for fast, efficient butt splicing. It has an automatic cartridge feed (7-to-1 mechanical advantage and ratchet action) that allows the craftsperson to complete a crimp with one hand, freeing the other hand for wire handling. The E-9BM tool is designed for universal connector crimping. It is a heavy-duty tool that is capable of crimping all Scotchlok connectors. It has a parallel closing action and adjustable jaws, and features a 10-to-1 mechanical advantage that allows it to handle all wire gauges. The E-9E tool is a lightweight tool that is heavy on performance. It has a completely parallel closing action and a 4-to-1 mechanical advantage that make it one of the most versatile and easy-to-use crimping tools on the market.
The 3M Scotchlok crimping tools are designed to give high mechanical advantage and reduce operator fatigue. Each model—E-9C, E-9BM, E-9E, and E-9Y—offers specific features such as automatic cartridge feed, parallel closing action, and stepped jaws for various connector and wire gauge applications.
The document includes product specifications, ordering information, and important safety notices. It also lists shipping details and contact information for 3M Telecom Systems Division.
| E-9C mechanical advantage | 7:1 |
|---|---|
| E-9BM mechanical advantage | 10:1 |
The E-9C tool provides a 7:1 mechanical advantage.
