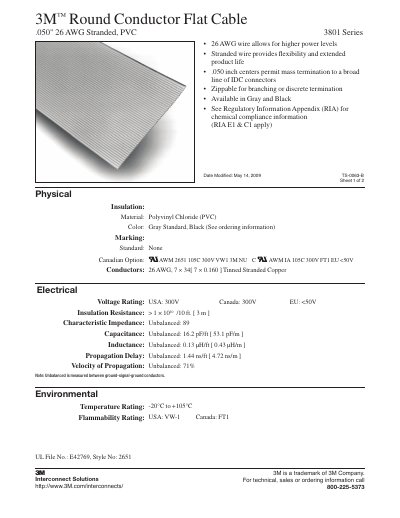

The 3M 3801 Series round conductor flat cable features .050 inch center spacing, 26 AWG stranded copper conductors, and PVC insulation, providing flexibility, extended product life, and suitability for mass termination to a broad range of IDC connectors. It is available in gray (standard) and black (special) colors and can be ordered in 100 ft or 300 ft rolls.
Technical data include a 300 V rating (USA/Canada), <50 V (EU), characteristic impedance of 89 Ω, capacitance of 16.2 pF/ft, and an operating temperature range of –20 °C to +105 °C. The cable complies with RoHS and other regulatory standards, and a one‑year limited warranty is provided.
| Conductor gauge | 26 AWG |
|---|---|
| Voltage rating (USA/Canada) | 300 V |
| Characteristic impedance | 89 Ω (unbalanced) |
| Capacitance | 16.2 pF/ft (unbalanced) |
| Operating temperature range | -20 °C to +105 °C |
| Flammability rating (USA) | VW‑1 |
| Color options | Gray (standard), Black (special) |
It is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
The cable can be used from –20 °C up to +105 °C.
It is offered in gray (standard) and black (special) colors.
The unbalanced characteristic impedance is 89 Ω.
