3M™ D Sub Socket Socket Connector 8300 Series is a connector produced by 3M company. This connector has a glass filled polyester (PBT) insulation material, UL 94V-0 flame resistance, gray color, copper alloy plating contact material, steel plating tin contact material, stainless steel strain relief material, and can accommodate 26 and 28 AWG solid or stranded wire.
The 3M 8300 Series D Sub Socket is a low‑profile connector available with open or closed end covers and four mounting options. It features improved metal strain relief that hooks directly to the metal shell and is RoHS compliant.

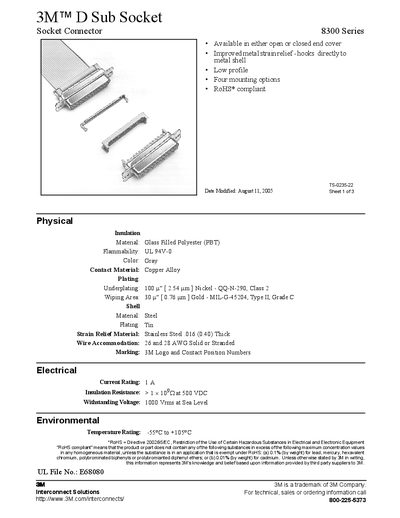

The datasheet lists detailed material specifications, electrical ratings, temperature range, and ordering information, including contact dimensions, plating details, and strain‑relief options for front or rear panel mounting.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Underplating | 100 µin (2.54 µm) Nickel – QQ‑N‑290, Class 2 |
| Wiping Area | 30 µin (0.76 µm) Gold – MIL‑G‑45204, Type II, Grade C |
| Shell Material | Steel |
| Shell Plating | Tin |
| Strain Relief Material | Stainless Steel .016 (0.40) mm Thick |
| Wire Accommodation | 26 and 28 AWG Solid or Stranded |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | -55 °C to +105 °C |
| RoHS Compliance | Yes |
The connector is rated for a current of 1 A.
Yes, the product is RoHS compliant.
It offers four mounting options, including open or closed end covers and front or rear panel mounting.
