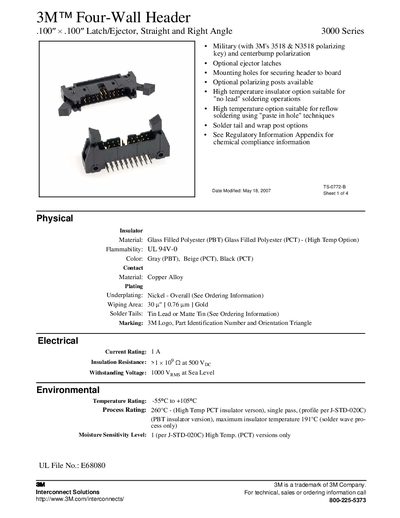

3M Four-Wall Header .100″ × .100″ Latch/Ejector, Straight and Right Angle 3000 Series with high temperature insulator option suitable for no lead soldering operations.
The 3M 3000 Series Four-Wall Header is offered in straight and right‑angle configurations with optional latch/ejector styles, polarizing posts, and high‑temperature insulators suitable for reflow soldering. Physical options include glass‑filled polyester (PBT) or glass‑filled polyester (PCT) insulators, various plating finishes, and customizable solder tail styles.
The document also lists electrical specifications such as a 1 A current rating, 1000 V sea‑level withstanding voltage, and temperature operating range from –55 °C to +105 °C. Regulatory compliance (RoHS, EU and China) and warranty terms are detailed in the appendices.
| Insulator Material | Glass Filled Polyester (PBT) / Glass Filled Polyester (PCT) |
|---|---|
| Flammability | UL 94V-0 |
| Color | Gray (PBT), Beige (PCT), Black (PCT) |
| Contact Material | Copper Alloy |
| Plating | Nickel – Overall (see ordering information) |
| Withstanding Voltage | 1000 V (sea level) |
| Temperature Rating | -55 °C to +105 °C |
It operates from –55 °C up to +105 °C.
The header can be supplied with glass‑filled polyester (PBT) or glass‑filled polyester (PCT) for high‑temperature use.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC, with specific exemptions noted in the regulatory appendix.
