3M MetPak HSHM Press-Fit Header 2 mm Type B22, 110 Signal Contacts, 5 Rows, Right Angle HSHM Series is a high-performance connector with data rates up to 5 Gb/s, low crosstalk, 50/100 Ω (single-ended/differential) impedance, modular/scalable format, IEC 61076-4-101 standard press-fit headers and receptacles, 63 mated lines per linear inch, end-to-end stackable with 5 row 3M™ MetPak™ CP2, HM, and HSHM headers and mates with 3M™ MetPak™ HSHM sockets.
The MetPak HSHM Press-Fit Header is a 2 mm Type B22, right‑angle connector with 110 signal contacts arranged in five rows. It is designed for high‑speed applications, offering up to 5 Gb/s data rates and low crosstalk.

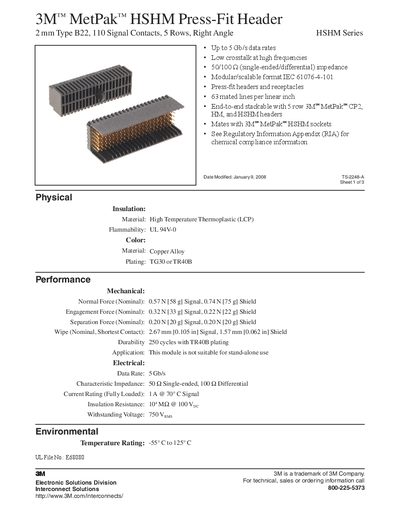

The handbook lists mechanical and electrical performance data, plating options, recommended PCB hole patterns, and extensive RoHS and China RoHS compliance information. It also includes ordering details and warranty terms.
| Data Rate | Upto 5 Gb/s |
|---|---|
| Impedance | 50 Q single‑ended / 100 Q differential |
| Signal Contacts | 110 |
| Rows | 5 |
| Temperature Rating | -55 °C to 125 °C |
The HSHM Press‑Fit Header supports data rates up to 5 Gb/s.
It is rated for operation from –55 °C to 125 °C.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC, with specific exemptions noted in the regulatory appendix.
The connector provides 110 signal contacts.
