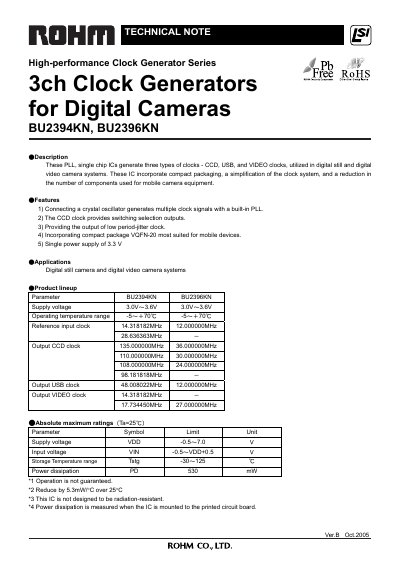

BU2394KN/BU2396KN is a single-chip clock generator with a built-in PLL that generates CCD, USB and VIDEO clocks for digital cameras. It features small packaging, simplified clock systems, and reduces the number of components used in mobile camera equipment.
The BU2394KN and BU2396KN are three‑channel PLL clock generator ICs designed for digital still and video camera applications. They generate CCD, USB and VIDEO clocks from a crystal oscillator, simplifying the clock architecture of mobile camera equipment.
Key features include a single 3.3 V supply, compact VQFN‑20 package, low period‑jitter outputs, and selectable reference input frequencies (14.318182 MHz or 12 MHz). The devices operate from –5 °C to +70 °C and provide a range of output frequencies for CCD (135 MHz‑98 MHz), USB (48 MHz), and VIDEO clocks.
| Supply voltage | 3.0 V~3.6 V |
|---|---|
| Operating temperature range | -5 °C~+70 °C |
| Reference input clock (BU2394KN) | 14.318182 MHz |
| Output USB clock (BU2394KN) | 48.008022 MHz |
| Power dissipation (max) | 530 mW |
Both devices operate from a single 3.3 V supply, with an allowed range of 3.0 V to 3.6 V.
The absolute maximum power dissipation is specified as 530 mW.
The IC is rated for operation from –5 °C to +70 °C.
