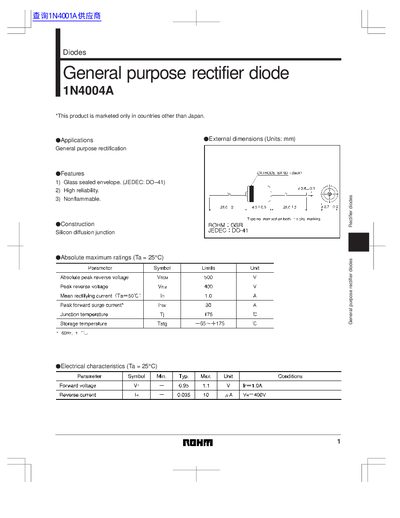

The document describes the features and characteristics of a general purpose rectifier diode 1N4004A, including glass sealed envelope, high reliability, and nonflammable.
The 1N4004A is a general‑purpose rectifier diode marketed outside Japan. It is designed for general purpose rectification applications and features a glass‑sealed envelope (JEDEC: DO‑41), high reliability and non‑flammable construction.\n\nThe datasheet provides details on the diode's construction (silicon diffusion junction), absolute maximum ratings, electrical characteristics at 25 °C, and external dimensions in a DO‑41 package.
| Package | DO-41 |
|---|---|
| Envelope | Glass sealed |
| Construction | Silicon diffusion junction |
It is used for general purpose rectification.
The diode is built with a silicon diffusion junction.
