RLZ36B Diodes Rev.A is a Zener diode with a voltage regulation of 3.6V. It has a maximum power dissipation of 175mW and a storage temperature of -65 to +175℃. The diode is available in a LLDS package.

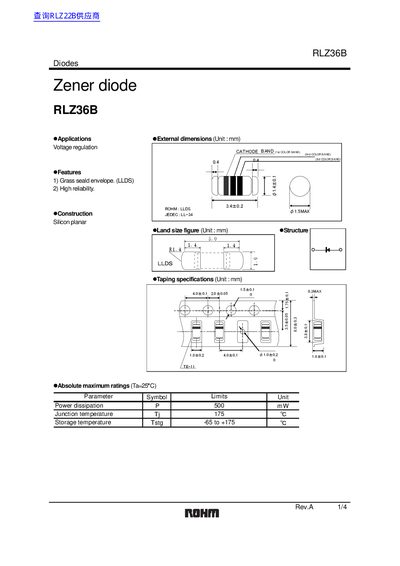

The RLZ series Zener diodes from Rohm are offered in a glass‑sealed (LLDS) package with high reliability and a range of voltage options. The datasheet lists external dimensions, color‑code markings and construction details for each part number.
Electrical specifications include absolute maximum ratings such as power dissipation, junction temperature and storage limits, as well as detailed Zener voltage ranges, reverse voltage and dynamic impedance curves. Application notes and usage guidelines are provided in the appendix.
| Power dissipation | 500 mW |
|---|---|
| Junction temperature (Tj) | 175 °C |
| Storage temperature (Tstg) | -65 to +175 °C |
| Zener voltage (RLZ36B) | 3.600 – 3.845 V |
The maximum power dissipation is 500 mW.
The storage temperature range is –65 °C to +175 °C.
The RLZ36B Zener voltage ranges from 3.600 V to 3.845 V.
