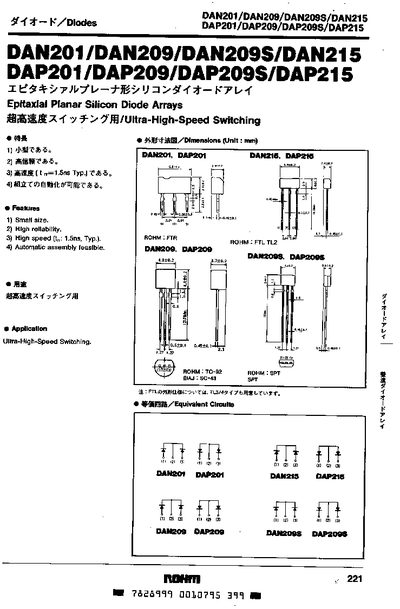

The ROHM diode array series (DAN201, DAN209, DAN209S, DAN215, DAP201, DAP209, DAP209S, DAP215) provides ultra‑high‑speed switching with a typical forward recovery time of 1.5 ns. These planar silicon diode arrays are compact, highly reliable, and suitable for automated assembly.
The document lists absolute maximum ratings, electrical characteristics, and typical performance curves for each model, including forward current, reverse voltage, surge capability, and temperature limits. This manual is written in Japanese.
| Typical forward recovery time | 1.5 ns (typ.) |
|---|
The typical forward recovery time is 1.5 ns.
