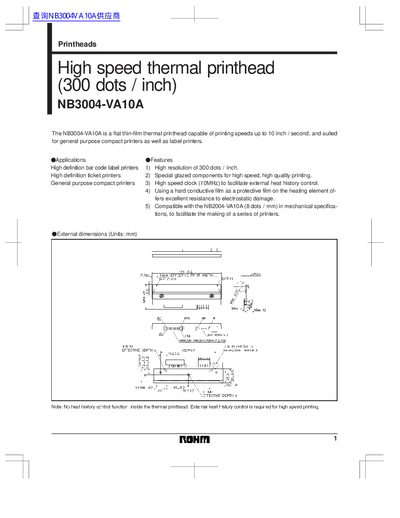

The NB3004-VA10A is a flat thin-film thermal printhead capable of printing speeds up to 10 inch / second, and suited for general purpose compact printers as well as label printers.
The NB3004-VA10A is a flat thin‑film thermal printhead designed for high‑speed label, ticket, and compact printers. It offers 300 dots per inch resolution and can print up to 10 inch per second, requiring external heat‑history control for optimal performance.
Key specifications include an effective printing width of 108.4 mm, dot pitch of 0.0847 mm, 1280 total dots, and a maximum clock frequency of 10 MHz. The datasheet also provides pin assignments, timing charts, and equivalent circuit diagrams for integration.
| Effective printing width | 108.4 mm |
|---|---|
| Dot pitch | 0.0847 mm |
| Total dot number | 1280 dots |
| Average resistance | 850 Ω |
| Applied voltage | 24 V |
| Applied power per dot | 0.602 W/dot |
| Maximum clock frequency | 10 MHz |
| Operating temperature range | -5 °C to 45 °C |
It can print at speeds up to 10 inch per second.
The printhead has a total of 1280 dots.
It operates between –5 °C and 45 °C.
The applied voltage is 24 V.
