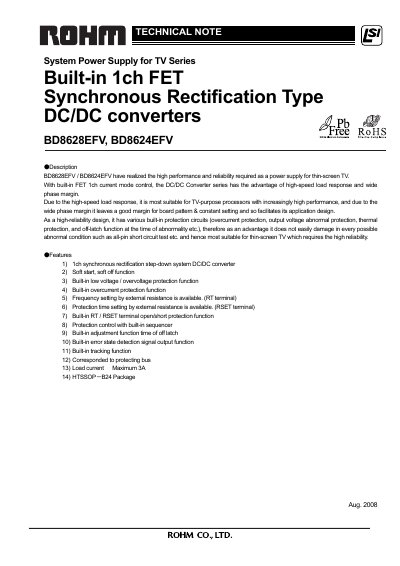

BD8628EFV / BD8624EFV are power supplies for thin-screen TVs, with advantages of high-speed load response and wide phase margin. They have built-in protection circuits and are suitable for high-reliability applications.
The BD8628EFV and BD8624EFV are high‑performance, 1‑channel synchronous‑rectification step‑down DC/DC converters designed for thin‑screen TV power supplies. They offer fast load response, wide phase margin, and built‑in protection circuits for high reliability.
Key features include soft‑start/off functions, built‑in over‑/under‑voltage and over‑current protection, external resistance programming for frequency and latch timing, and a HTSSOP‑B24 package. The document lists detailed electrical specifications, terminal functions, and operation instructions such as CTL‑controlled ON/OFF.
| Maximum load current | 3 A |
|---|---|
| Package type | HTSSOP‑B24 |
| Oscillation frequency | 400 kHz – 600 kHz |
| Soft‑start time range | 3 ms – 30 ms |
The maximum load current is 3 A.
The DC/DC converter is controlled ON/OFF via the CTL terminal.
Both devices are supplied in an HTSSOP‑B24 package.
The oscillation frequency can be set between 400 kHz and 600 kHz.
