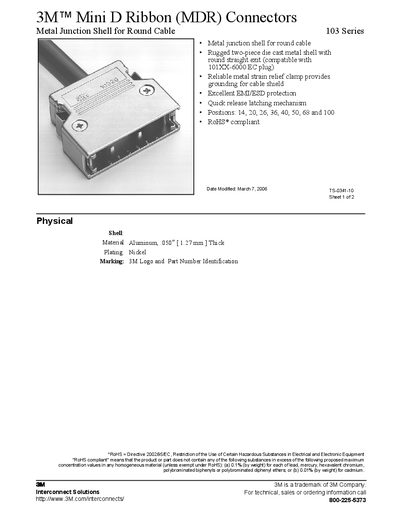

3M™ Mini D Ribbon (MDR) Connectors Metal Junction Shell for Round Cable 103 Series is a metal junction shell produced by 3M Company. It is made of aluminum with a thickness of 0.050 inches and is nickel-plated. It has 14, 20, 26, 36, 40, 50, 68 and 100 positions and complies with the RoHS standard.
The 3M Mini D Ribbon (MDR) connectors provide a rugged two‑piece die‑cast aluminum shell with a round straight exit, offering reliable metal strain‑relief, EMI/ESD protection, and a quick‑release latching mechanism. They are available in multiple positions (14, 20, 26, 36, 40, 50, 68, 100) and are RoHS compliant.
Technical data include shell material and thickness, plating, contact dimensions, and ordering information. The package contains the metal shell halves, latches, cable clamp, and screws. Warranty and liability statements are included in the final notice.
| Shell material | Aluminum |
|---|---|
| Shell thickness | 0.050 in (1.27 mm) |
| Plating | Nickel |
| Available positions | 14, 20, 26, 36, 40, 50, 68, 100 |
| RoHS compliance | Yes |
The shell is made of aluminum.
Yes, it is RoHS compliant.
Positions are offered in 14, 20, 26, 36, 40, 50, 68, and 100.
Use the part number 103XX‑A200‑00 when ordering.
