3M MDR Connectors 0.050″ Surface Mount Right Angle Receptacle - Shielded 102 Series features reliable repetitive plugging, ultra-low signal skew for high data rate transmission, interface latch design for connection stability.
The 3M 102 Series Mini D Ribbon (MDR) connectors are .050" board‑mount, through‑hole, vertical receptacles with shielding. They feature a rugged die‑cast metal case, wiper‑on‑wiper contacts, screw lockdown for PCB retention, and an IEEE 1284C 36‑contact interface.

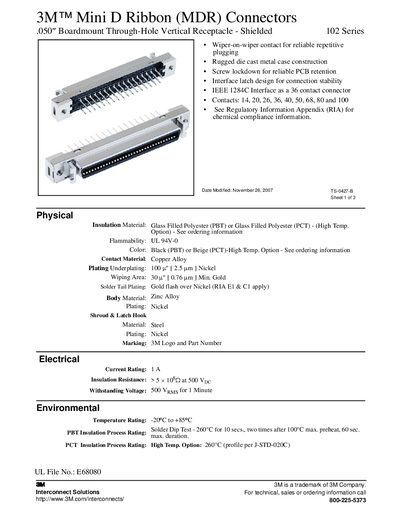

The document provides detailed physical, electrical and environmental specifications, contact dimensions, ordering options, and RoHS compliance information for the various contact configurations (14‑100 pins).
| Series | 102 Series |
|---|---|
| Connector type | .050" Boardmount Through‑Hole Vertical Receptacle – Shielded |
| Contact options | 14, 20, 26, 36, 40, 50, 68, 80, 100 contacts |
| Operating temperature range | -20 °C to +85 °C |
| Insulation material | Glass Filled Polyester (PBT) or Glass Filled Polyester (PCT) |
| Contact material | Copper Alloy |
| Plating | 100 µm Nickel, 30 µm Gold over Nickel |
| RoHS compliance | EU RoHS 2005/95/EC |
They operate from –20 °C to +85 °C.
Yes, they comply with the EU RoHS Directive 2005/95/EC.
Available configurations include 14, 20, 26, 36, 40, 50, 68, 80, and 100 contacts.
