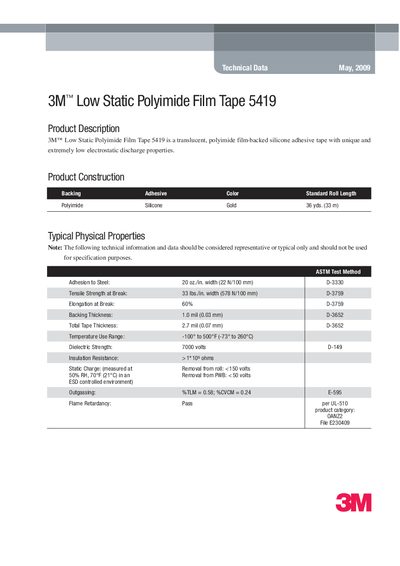

3M™ Low Static Polyimide Film Tape 5419 is a translucent, polyimide film-backed silicone adhesive tape with unique and extremely low electrostatic discharge properties.
The 3M™ Low Static Polyimide Film Tape 5419 is a translucent, polyimide film‑backed silicone adhesive tape with extremely low electrostatic discharge properties. It is designed for use as a mask during wave soldering, as a release surface for high‑temperature processes, and offers gold‑tab protection.
The tape is RoHS compliant, stores best at 60°‑80°F (16°‑27°C) with 40‑50% RH, and has a shelf life of 12 months from the date of manufacture. Certification information, warranty details, and contact information for additional support are also provided.
| Adhesion to Steel | 20 oz./in. width (22 N/100 mm) |
|---|---|
| Tensile Strength at Break | 33 Ibs./in. width (578 N/100 mm) |
| Elongation at Break | 60% |
| Backing Thickness | 1.0 mil (0.03 mm) |
| Temperature Use Range | -100° to 500°F (-73° to 260°C) |
| Dielectric Strength | 7000 volts |
| Insulation Resistance | > 1×10⁸ ohms |
The tape can be used from –100 °F to 500 °F (–73 °C to 260 °C).
Yes, the tape complies with the EU RoHS directive.
Store the tape at 60°‑80°F (16°‑27°C) and 40‑50% relative humidity in its original carton.
Use the tape within 12 months from the date of manufacture for best performance.
