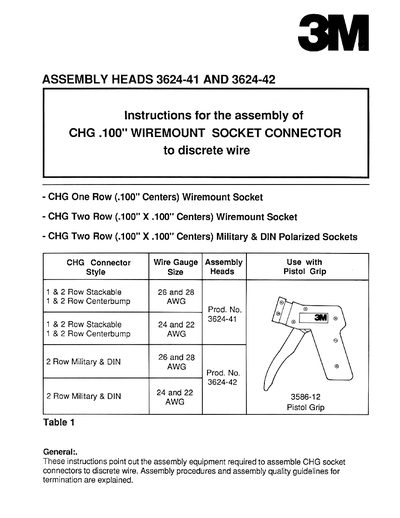

This document provides step‑by‑step procedures for assembling CHG .100" wiremount socket connectors using the appropriate assembly heads. It describes the required equipment, how to set up the assembly head, and the wire insertion process.
The guide also includes quality inspection criteria, wire insertion depth tables, and safety cautions to ensure reliable terminations. An important notice about product liability and warranty from 3M concludes the manual.
The 3624‑41 Assembly Head is used for the 1‑row and 2‑row non‑MIL‑DIN polarized CHG connectors.
