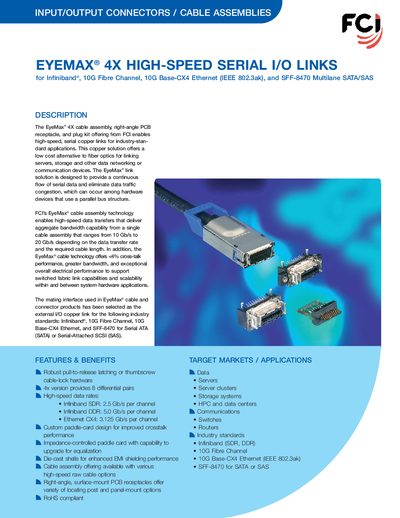

FCI’s EyeMax®4X cable assembly, right-angle PCB receptacle, and plug kit offering provides high bandwidth, low-cost copper cable connectivity solutions for linking servers, storage, and other data networking or communication devices. The solution is designed to provide a continuous flow of serial data and eliminate data traffic congestion, from which hardware devices that use a parallel bus structure can suffer.
The EyeMax 4X cable assembly and connector kit from FCI enables high‑speed serial copper links for Infiniband®, 10G Fibre Channel, 10G Base‑CX4 Ethernet, and SFF‑8470 SATA/SAS applications. The product offers a low‑cost alternative to fiber optics with up to 20 Gb/s bandwidth, <4% cross‑talk, and robust EMI shielding.
Technical data includes differential impedance of 100 ± 10 Ω, insertion loss up to 10 dB at 1.25 GHz, and environmental limits from –10 °C to 60 °C. Part numbers for cable assemblies, plug kits, and board‑mount receptacles are listed, along with a capability matrix for various AWG sizes and lengths.
| Differential impedance | 100 ± 10 Ω @ 100 psec |
|---|---|
| Insertion loss | 10.0 dB max @ 1.25 GHz |
| Near‑end crosstalk | <4 % at 100 psec |
| Jitter | 0.25 UI (100 psec) |
| Eye pattern opening | 300 psec width min., 316 mV height min. @ 2.5 Gbps |
| Durability (cycle life) | 250 cycles |
| Insertion force | 30 N (6.6 lb) max. |
| Withdrawal force | 15 N (6.3 lb) min. |
| Retention force | 75 N (16.9 lb) min. |
| Minimum bend radius | 4 inches at 90° |
| Operating temperature range | -10 °C to 60 °C |
| Thermal shock rating | 10 cycles, -55 °C to 85 °C |
| Temperature life at 90 °C | 456 hours |
The insertion loss is limited to 10.0 dB maximum at 1.25 GHz.
The cable operates from –10 °C up to 60 °C.
Each cable assembly provides eight fully‑shielded differential pairs.
Near‑end crosstalk is less than 4 % at 100 psec.
