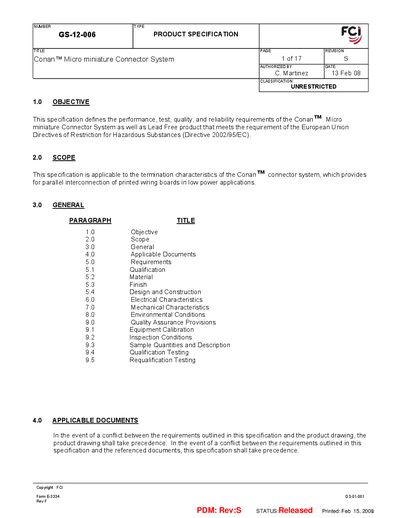

This specification defines the performance, test, quality, and reliability requirements of the Conan™ Micro miniature Connector System as well as Lead Free product that meets the requirement of the European Union Directives of Restriction for Hazardous Substances (Directive 2002/95/EC).
This document specifies the performance, test, quality, and reliability requirements for the Conan™ Micro miniature connector system identified as FCI GS-12-006. It covers electrical, mechanical, and environmental characteristics, as well as qualification and re‑qualification testing procedures.
Key sections include electrical characteristics such as current rating and contact resistance, mechanical characteristics like mating force and board retention, and environmental conditions including humidity, thermal shock, and vibration tests. The specification also lists applicable military, federal, and industry standards.
| Maximum current rating per individual contact | 2.0 A DC |
|---|---|
| Low‑level contact resistance (4.15 mm‑5.5 mm height) | ≤ 20 mΩ initially, ≤ 30 mΩ after exposure |
| Insulation resistance after exposure | ≥ 1 GΩ |
| Capacitance between contacts | ≤ 2.0 pF |
| Mating force per contact | ≤ 125 g |
| Unmating force per contact | ≥ 45 g |
| Board removal force | ≥ 10 lb |
| Thermal shock temperature range | -55 °C ± 5 °C to +130 °C ± 5 °C |
Low‑level contact resistance must not exceed 20 mΩ initially and 30 mΩ after environmental exposure for the 4.15 mm‑5.5 mm height series.
