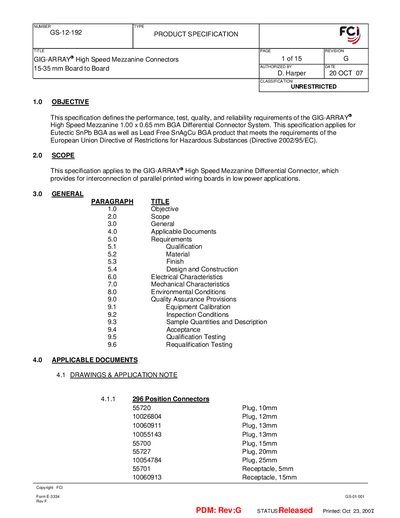

This document is the product specification of FCI company about GIG-ARRAY® High Speed Mezzanine 1.00 x 0.65 mm BGA Differential Connector System.
The GS-12-192 product specification outlines the requirements for FCI's GIG‑ARRAY® high‑speed mezzanine differential connector system. It covers material, finish, design, electrical, mechanical and environmental characteristics, as well as qualification testing procedures.
The document includes detailed test parameters such as contact resistance, insulation resistance, propagation delay, impedance, crosstalk, and mechanical mating forces, providing engineers with the data needed to integrate the connector into low‑power board‑to‑board applications.
| Dielectric Withstanding Voltage | 500 V DC |
|---|---|
| Propagation Delay (15 mm height) | 55 ps |
| Differential Characteristic Impedance | 100 Ω ±10/‑15 Ω |
| Average Mating Force (200‑position) | 14.5 Kg·m |
| Minimum Withdrawal Force (200‑position) | 3.0 Kg·m |
The propagation delay for a 20 mm height is 90 ps.
The average mating force is specified as 14.5 Kg·m.
