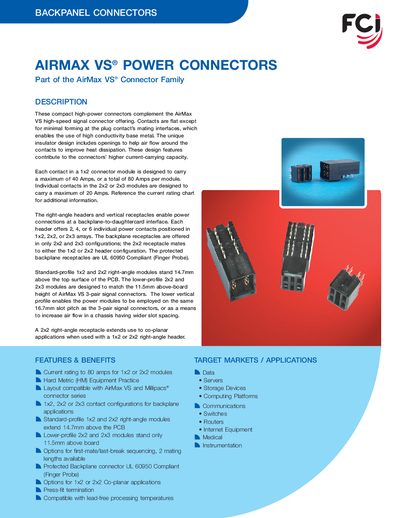

AirMax VS® POWER CONNECTORS PRODUCT OVERVIEW
The handbook describes the AirMax VS® power connectors, which complement the high‑speed signal connector family. It details the compact, high‑power design, flat contacts, and an insulator that promotes airflow for better heat dissipation. Current‑carrying capacity reaches up to 40 A per contact in 1×2 modules and 20 A in larger arrays, with total module ratings of 80 A.
Technical data include mechanical dimensions, electrical ratings, material composition, safety certifications, and part numbers for various right‑angle and vertical configurations. The document also lists approved standards such as UL 60950, IEC 60950‑1, and Telcordia GR‑1217‑CORE, making it suitable for servers, storage, networking, and industrial applications.
| Maximum current per contact (1×2 module) | 40 A |
|---|---|
| Maximum current per contact (2×2/2×3 modules) | 20 A |
| Voltage rating | 150 V DC |
| Contact resistance | 1.0 mΩ max |
| Mating force (1×2/2×2 module) | 31.2 N max |
| Unmating force (1×2/2×2 module) | 9.0 N min |
| Press‑fit insertion force | 67 N max per contact tail |
| Durability | 100 mating cycles |
| Standard‑profile height above PCB | 14.7 mm |
| Lower‑profile height above PCB | 11.5 mm |
| Safety certifications | UL 60950 & IEC 60950‑1 |
| Approval standard | Telcordia GR‑1217‑CORE |
Each contact in a 1×2 module can carry up to 40 A, giving a total module rating of 80 A.
Yes, the protected backplane receptacles are UL 60950 compliant (Finger Probe).
The connectors are rated for 150 V DC.
The connectors are rated for 100 mating cycles.
