3M 1350 Series is UL 510 recognized flame retardant polyester film tape, suitable for application at temperature not exceeding 130˚C.

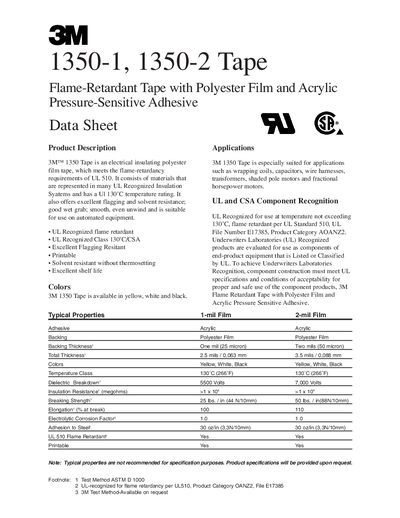

The 3M 1350‑1 and 1350‑2 tapes are pressure‑sensitive adhesive tapes with a polyester film backing and acrylic adhesive. They meet UL 510 flame‑retardancy requirements, are rated for a maximum temperature of 130 °C, and provide good flagging, solvent resistance, and printable surfaces.
These tapes are suited for wrapping coils, capacitors, wire harnesses, transformers, shaded‑pole motors and fractional‑horsepower motors. They are UL and CSA recognized components, and are offered in yellow, white and black colors.
| Temperature Class | 130 °C |
|---|---|
| Dielectric Breakdown (1‑mil film) | 5500 V |
| Insulation Resistance | >1 × 10⁸ MΩ |
| Breaking Strength (1‑mil) | 25 Ibs/in (44 N/10 mm) |
| Elongation (1‑mil) | 100 % |
| Adhesion to Steel | 30 oz/in (3.3 N/10 mm) |
| Available Colors | Yellow, White, Black |
It is rated for a temperature class of 130 °C.
Yes, it is UL 510 flame‑retardant.
The tape is offered in yellow, white and black.
The 1‑mil film version has a dielectric breakdown of 5500 V.
