3M Round Conductor Flat Cable .050 28 AWG Stranded, PVC 3365 Series Product features: 28 AWG wire on 0.050 inch centers permits mass termination to a broad line of IDC connectors; stranded wire provides flexibility and extended product life; Zippable for branching or discrete termination; Available in Gray or Black; RoHS compliant
The 3365 Series round conductor flat cable from 3M features .050‑inch center spacing with 28 AWG stranded copper conductors, available in gray or black PVC insulation. It is RoHS compliant and designed for mass termination to a wide range of IDC connectors.

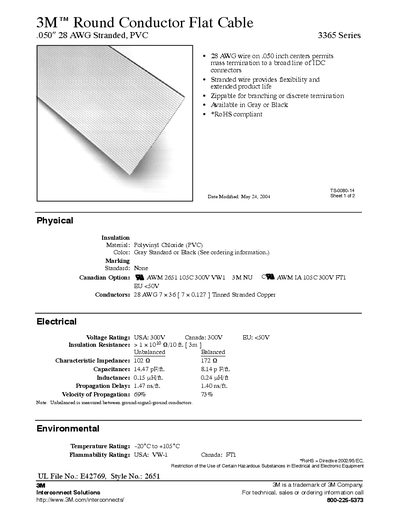

The sheet provides detailed electrical, environmental, and mechanical specifications, ordering dimensions, and warranty information for the cable, which is offered in standard lengths up to 100 meters per roll.
| Conductor size | .050 inch centers, 28 AWG stranded copper |
|---|---|
| Voltage rating | USA/Canada 300 V, EU <50 V |
| Insulation material | Polyvinyl Chloride (PVC) |
| Temperature rating | -20 °C to +105 °C |
| Flammability rating | USA VW‑1, Canada FT1 |
| Characteristic impedance (unbalanced) | 102 Ω |
| Capacitance | 14.47 pF/ft |
| Inductance | 0.15 µH/ft |
| Velocity of propagation | 69 % (unbalanced), 73 % (balanced) |
It is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
The cable is available in standard gray or special black.
The cable can be used from –20 °C up to +105 °C.
