3M VHB 5952F Acrylic Foam Tape is a double coated pressure sensitive adhesive tape for bonding a wide variety of substrates including lower surface energy materials such as powder coated paints and plastics. In many cases abrasion of surface is not required.
The 3M VHB 5952F acrylic foam tape is a double‑coated pressure‑sensitive adhesive designed for bonding a wide range of substrates, including low surface‑energy materials such as powder‑coated paints and plastics. It offers high tensile, shear and peel adhesion while resisting solvents, moisture and plasticiser migration.

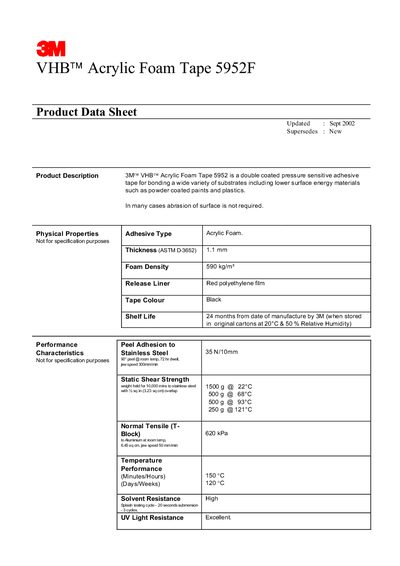

The sheet provides physical properties (thickness, foam density, release liner, colour), performance data (peel adhesion, static shear strength, tensile strength, temperature limits) and recommended surface preparation steps. Proper cleaning, drying and, when needed, sealing or priming of substrates are essential for optimal bond strength.
| Adhesive Type | Acrylic Foam |
|---|---|
| Thickness | 1.1 mm |
| Foam Density | 590 kg/m³ |
| Release Liner | Red polyethylene film |
| Tape Colour | Black |
| Shelf Life | 24 months (stored at 20 °C & 50 % RH) |
| Peel Adhesion to Stainless Steel | 35 N/10 mm (90° peel, room temp) |
| Static Shear Strength at 22 °C | 1500 g |
| Normal Tensile Strength (Block) | 620 kPa |
| Temperature Performance | 150 °C (minutes/hours), 120 °C (days/weeks) |
| Solvent Resistance | High |
| UV Light Resistance | Excellent |
Surfaces should be clean, dry and well unified; typical cleaning solvents are isopropyl alcohol/water mixture or heptane, and sealing or priming may be required for porous or certain metal substrates.
The tape has a shelf life of 24 months from the date of manufacture when stored in its original cartons at 20 °C and 50 % relative humidity.
The tape provides a 90° peel adhesion of 35 N per 10 mm at room temperature after a 72‑hour cure.
