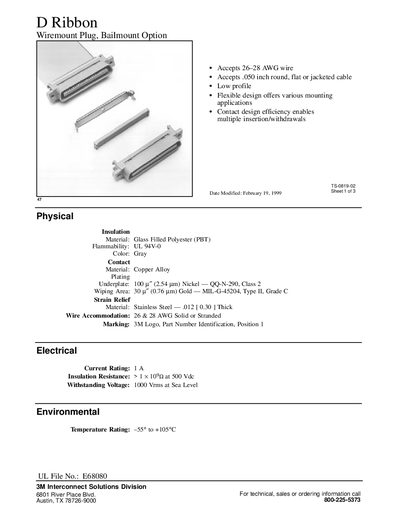

Technical specifications and features of the 3M 3572 series D Ribbon Wiremount Plug, including dimensions, materials, current rating, insulation resistance, rated voltage, environmental temperature range, UL file number, etc.
The D Ribbon Wiremount Plug with Bailmount option is a low‑profile, flexible connector that accepts 26‑28 AWG wire and .050‑inch round, flat or jacketed cable. Its design enables multiple insertion/withdrawals and supports various mounting applications.
This manual lists the physical, electrical, and environmental specifications, detailed dimensions for different contact positions, and ordering information for the connector and optional strain‑relief parts.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Withstanding Voltage | 1000 Vrms at sea level |
| Wire Size Acceptance | 26‑28 AWG |
| Cable Size Acceptance | .050 inch round, flat or jacketed |
It accepts 26‑28 AWG wire.
The connector accepts .050‑inch round, flat, or jacketed cable.
