Intel 6BXU Motherboard User Manual

6BXU motherboard user manual, introduce the motherboard features, specifications, installation, configuration and other information

Brand: Pentium
Category: Motherboard
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 424 KB
Published: 09 April, 2012
Updated: 30 September, 2023
MD5 checksum: C6FFE373C3FC17908BC0C88E1CDE465F
PDF: Intel 6BXU Motherboard User Manual PDF

About this manual

This manual introduces the Intel 6BXU motherboard, a Pentium II‑based PC/AT compatible board featuring the Intel 440BX chipset, AGP, PCI, ISA, and SCSI interfaces. It outlines key features such as support for 8 MB‑1 GB SDRAM, 4 DIMM slots, and various peripheral connectors.

The guide covers hardware installation, including unpacking, layout, jumper settings, and component installation, followed by detailed BIOS configuration procedures, power management options, and troubleshooting tips.

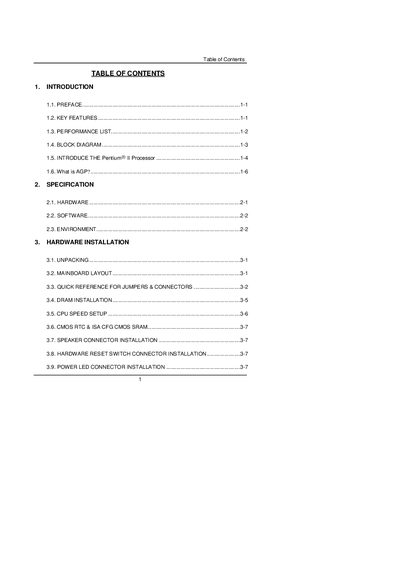

What's inside

Introduction
Key Features
Performance List
Block Diagram
Processor & AGP Overview
AGP Explanation
Hardware Installation
Mainboard Layout
BIOS Configuration
Power Management

Specifications

Supported Processor	Pentium II 200‑633 MHz
Chipset	Intel 440BX
Memory Capacity	8 MB – 1 GB SDRAM
DIMM Slots	4 slots, 3.3 V SDRAM
Expansion Slots	1 AGP, 4 PCI, 3 ISA
USB Ports	2
BIOS	Award BIOS, 2 Mbit FLASH

Frequently asked questions

What processor does the 6BXU motherboard support?

It supports Intel Pentium II processors running at 200‑633 MHz.

How many USB ports are available on the 6BXU motherboard?

The board provides two USB ports.

What type of BIOS is used on the 6BXU motherboard?

It uses Award BIOS with a 2 Mbit flash memory.

What expansion slots does the 6BXU motherboard have?

It includes one AGP slot, four PCI slots, and three ISA slots.
