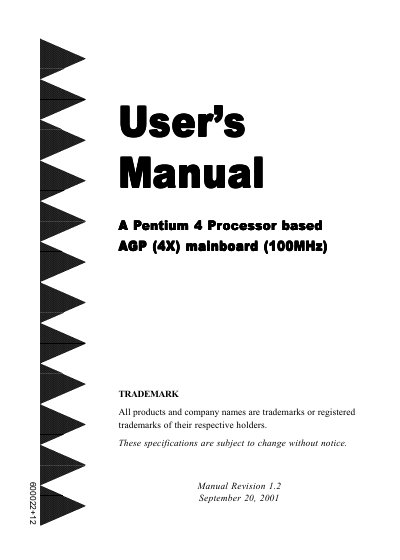

This manual introduces the features and characteristics of the Intel Pentium 4 Processor based AGP (4X) motherboard, including the motherboard's components, system overview, chipset components, Intel Pentium 4 processors, accelerated graphics port, hardware monitoring, bandwidth overview, motherboard form-factor, I/O shield connector, power-on/off (remote), system block diagram, etc.
This manual covers the Intel Pentium 4 (4X) 100 MHz AGP mainboard, detailing its components, chipset architecture, and supported interfaces. It includes a checklist of parts, a system block diagram, and an overview of the Intel® 845 chipset that powers the board.
Key sections guide users through installation, BIOS configuration, hardware monitoring, and driver updates. Appendices provide utility guides for BIOS flashing and other maintenance tasks.
| AGP Interface | 4X, 1.5 V |
|---|---|
| SDRAM Support | 133 MHz, up to 3 GB |
| Memory Controller Bus Rate | 400 MHz |
| Form Factor | Micro ATX |
| USB Controller | Integrated in ICH2 |
The board uses the Intel® 845 chipset, which includes the Memory Controller Hub, I/O Controller Hub (ICH2), and Firmware Hub.
It supports a 4X AGP interface operating at 1.5 V.
The mainboard follows the Micro ATX form factor.
The ICH2 hub integrates a single USB controller.
