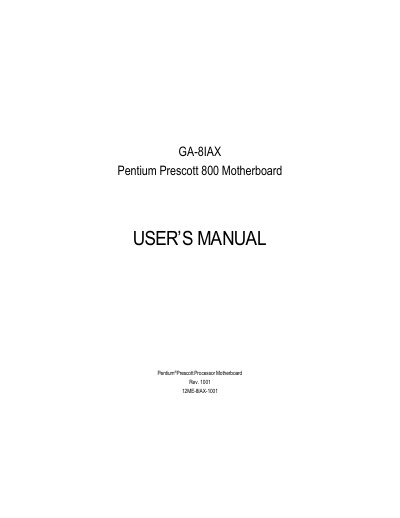

This document is the user manual of GA-8IAX Pentium Prescott 800 Motherboard. It introduces the features and installation and usage of the motherboard.
This manual provides step‑by‑step instructions for installing the GA-8IAX motherboard, including CPU, memory, expansion cards, and power connections. It also includes safety precautions for handling sensitive components.
Key sections cover hardware installation, BIOS configuration, driver installation for Intel, Broadcom, and Realtek components, and a technical reference with block diagrams and acronyms.
| Form Factor | ATX |
|---|---|
| CPU Support | Intel® Pentium Prescott LGA 775 |
| Chipset | Intel® Alderwood 925X |
| Memory Slots | 4 x 240‑pin DDRII DIMM |
| PCI Slots | 4 × 32‑Bit/33 MHz (5 V) |
| PCI‑E Slots | 1 × x16, 1 × x1 |
| On‑Board LAN | Broadcom 5751 Gigabit Ethernet |
| USB Ports | 4 × USB 2.0 |
| SATA Connectors | 4 × SATA |
