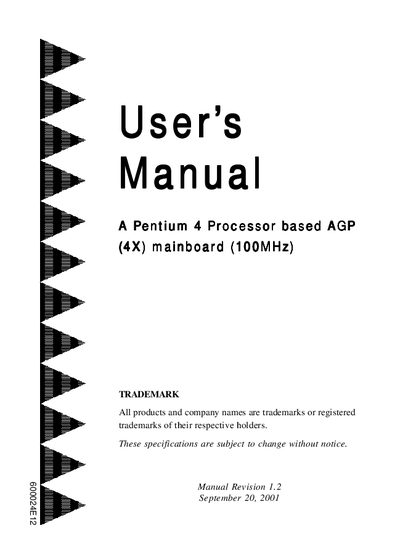

Intel Pentium 4 Processor based AGP Mainboard User Manual

This is a user manual for Intel Pentium 4 Processor based AAAAAGP GP GP GP GP (4X) mainboard (100MHz) d (100MHz) d (100MHz) d (100MHz) d (100MHz) 600024E12

Brand: Pentium
Category: Motherboard
Document type: User Manual
Language: English
Pages: 87
File format: PDF
File size: 6.3 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: C6314F21843C2030751B26327A5BEDB4
PDF: Intel Pentium 4 Processor based AGP Mainboard User Manual PDF

About this manual

This manual describes a Pentium 4 processor‑based AGP mainboard built around the Intel® 845 chipset. It covers the board’s components, chipset architecture, and supported features such as AGP 4X, 133 MHz SDRAM, and Ultra ATA/66/100 interfaces.

The guide provides step‑by‑step installation instructions, BIOS configuration details, and troubleshooting information, along with appendices for BIOS updates and driver installation.

What's inside

Introduction
System Overview
Chipset Components
Mainboard Features
Installation Procedure
BIOS Setup
Appendix – BIOS Update

Specifications

Chipset	Intel 845 (MCH, ICH2, FWH)
AGP Interface	AGP 2.0, supports 2X and 4X, 1.5 V
Memory Support	133 MHz SDRAM, up to 3 GB
Data Transfer Rate	400 MHz system bus
IDE Controller	2‑channel Ultra ATA/66/100
USB Controller	Integrated USB host controller

Frequently asked questions

What chipset does the mainboard use?

The board uses the Intel 845 chipset, which includes a Memory Controller Hub, I/O Controller Hub (ICH2), and Firmware Hub.

Which AGP speeds are supported?

The board supports AGP 2X and AGP 4X operation at 1.5 V.

How much SDRAM can be installed?

Up to 3 GB of 133 MHz SDRAM can be installed on the board.

What is the system bus speed?

The system bus operates at 400 MHz.

Download PDF (6.3 MB)
