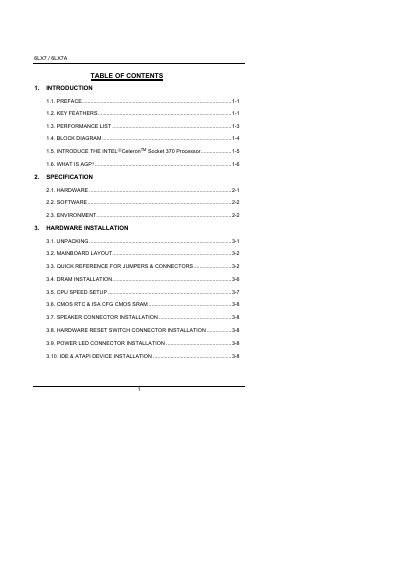

This document is an introduction to 6LX7 / 6LX7A 1, including the features and performance list of the product. It also introduces the IntelCeleronTM Socket 370 Processor and what AGP is. The document also includes detailed instructions for hardware installation and BIOS configuration.
This manual covers the Asus 6LX7A ATX motherboard, which supports Intel Celeron Socket 370 processors, AGP, PCI, ISA, and USB interfaces. It includes a full hardware installation guide, jumper and connector reference, and detailed BIOS configuration steps.
The document also lists the technical specifications such as supported CPU speeds, memory types, expansion slots, and I/O ports, helping users configure and maintain the system correctly.
| Supported CPU | Intel Celeron Socket 370 366‑566 MHz |
|---|---|
| System Speed | 66 MHz (AGP 2× up to 133 MHz) |
| Memory Support | 3 × 168‑pin DIMM sockets; 3.3 V EDO up to 768 MB, SDRAM up to 384 MB |
| USB Ports | 2 USB ports |
| Form Factor | 30.5 cm × 19 cm ATX |
It supports Intel Celeron Socket 370 processors ranging from 366 MHz to 566 MHz.
The board has three 168‑pin DIMM sockets that accept 3.3 V EDO or SDRAM modules, up to 768 MB EDO or 384 MB SDRAM.
The motherboard provides two USB ports.
It follows the ATX form factor measuring 30.5 cm by 19 cm.
