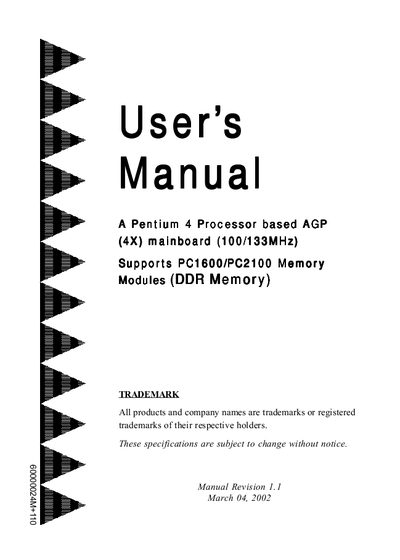

This manual introduces the features and characteristics of the P4 processor based AGP(4X) mainboard(100/133MHz) that supports PC1600/PC2100 memory modules.
This manual describes the EP-4BDM+ mainboard built around the Intel® 845 chipset, supporting Pentium 4 processors in a Socket 478 package. The board offers AGP 4X, 266 MHz DDR SDRAM (up to 2 GB), and a 400/533 MHz system bus for high‑performance computing.
The guide includes hardware installation steps, BIOS configuration, safety handling procedures for static electricity, and contact information for technical support and firmware updates.
| Chipset | Intel 845 |
|---|---|
| AGP Support | AGP 4X |
| Memory Type | DDR SDRAM (PC1600/PC2100) |
| Maximum Memory | 2 GB DDR SDRAM |
| Memory Bus Speed | 266 MHz DDR SDRAM |
| System Bus Speed | 400/533 MHz |
| CPU Socket | Socket 478 |
Visit the EPoX website at http://www.epox.com or http://www.epox.com.tw for the latest BIOS and driver downloads.
The board supports up to 2 GB of DDR SDRAM.
