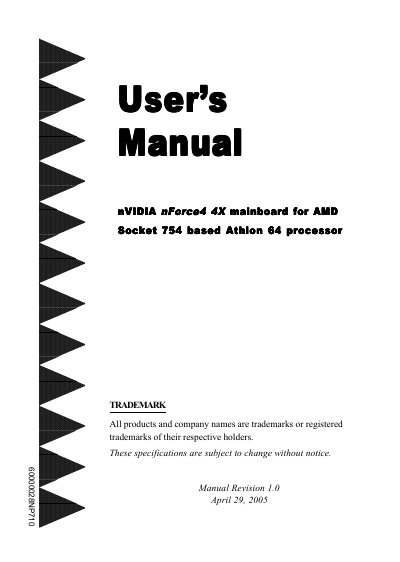

This is the user manual of NVIDIA nForce4 4X mainboard
This manual covers the NVIDIA nForce4 4X chipset‑based mainboard designed for AMD Socket 754 platforms. It includes an introduction to the board’s features, a detailed system block diagram, and a full list of package contents.
The guide walks users through installation procedures, CPU insertion, jumper settings, memory configuration, and expansion slot usage. It also explains BIOS navigation, RAID setup, driver installation, and provides appendices for BIOS updates and RAID utilities. This manual is written in Chinese.
| Chipset | NVIDIA nForce4 4X |
|---|---|
| Supported CPU | AMD Athlon™ 64 |
| CPU Socket | AMD Socket 754 |
| Network Interface | 10/100 LAN |
| Storage Interfaces | Serial ATA (SATA) with RAID support |
| Audio Channels | 6‑channel audio (Dolby Digital 5.1) |
| PCI Express | PCI‑Express (PCI‑E) slots |
The board supports AMD Athlon™ 64 processors.
Enter the RAID BIOS utility by pressing F10 at power‑on, then select the desired RAID mode (default is Mirroring) and configure the array.
Appendix A of the manual provides step‑by‑step instructions for updating the system BIOS.
