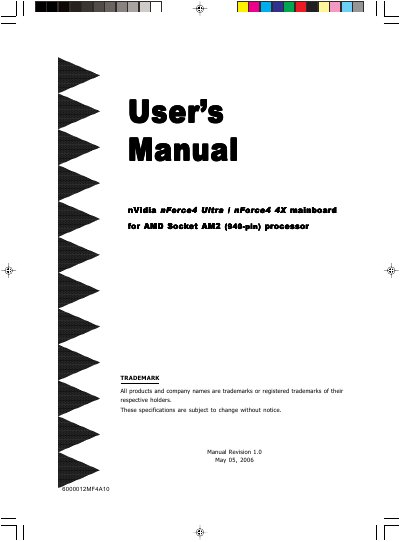

Nvidia nForce4 Ultra / nForce4 4X Motherboard User Manual
This manual provides detailed instructions for installing and configuring the Nvidia nForce4 Ultra / nForce4 4X ATX motherboard. It includes safety warnings, handling procedures, and step‑by‑step guidance for CPU installation, memory configuration, and peripheral connections.
The document also describes the board's features such as the nForce4 chipset, DDRII memory support, Gigabit Ethernet, SATA RAID, USB 2.0 ports, and BIOS utilities like Ghost BIOS and Thunder Flash. Appendices contain POST code tables and troubleshooting information.
Nvidia NFORCE4 specifications
| Chipset | NVIDIA nForce4 4X |
|---|---|
| Supported CPU | AMD Athlon™ 64 |
| CPU Socket | AMD Socket 754 |
| Network Interface | 10/100 LAN |
| Storage Interfaces | Serial ATA (SATA) with RAID support |
| Audio Channels | 6‑channel audio (Dolby Digital 5.1) |
| PCI Express | PCI‑Express (PCI‑E) slots |
All Nvidia NFORCE4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which processor is supported by the nForce4 4X mainboard?
The board supports AMD Athlon™ 64 processors.
How do you enable RAID on this motherboard?
Enter the RAID BIOS utility by pressing F10 at power‑on, then select the desired RAID mode (default is Mirroring) and configure the array.
What CPU socket does the nForce4 Ultra motherboard support?
It supports Socket‑AM2 (940‑pin) for AMD Athlon‑AM2 processors.
From: Nvidia nForce4 Ultra / nForce4 4X Motherboard User Manual
How many USB ports are provided on the board?
The board has ten USB 2.0 connectors – four on the rear panel and six additional ports.
From: Nvidia nForce4 Ultra / nForce4 4X Motherboard User Manual
