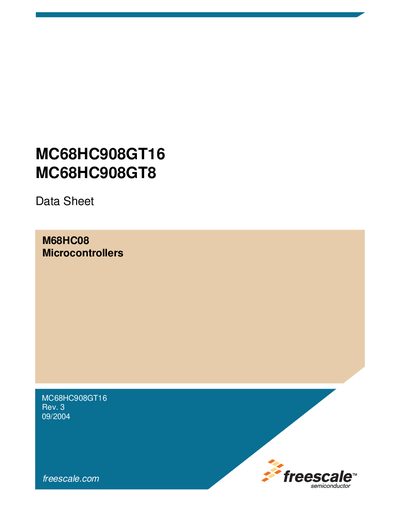

MC68HC908GT16 MC68HC908GT8 Data Sheet, introduces the features and characteristics of the M68HC08 microcontrollers.
This datasheet describes the MC68HC908GT16 and MC68HC908GT8 8‑bit microcontrollers, covering their architecture, core features, and pin‑out information. It includes a general description, memory organization, ADC functionality, configuration registers, and various peripheral modules such as timers, serial interfaces, and interrupt controllers.
Detailed electrical specifications, timing diagrams, and ordering information are provided, along with revision history and contact details for Freescale Semiconductor. The document is intended for system designers and software developers who need to integrate these MCUs into their applications.
The datasheet is Revision 3 dated September 2004.
The latest version can be accessed on Freescale’s website at http://freescale.com.
