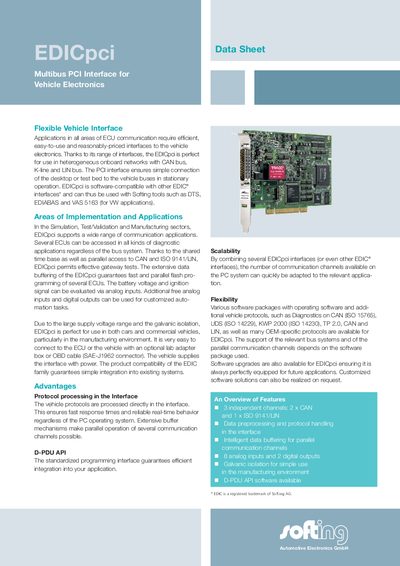

EDICpci is a PCI interface for vehicle networks, which can easily connect the desktop or test bed to the vehicle bus. It is suitable for heterogeneous on-board networks with CAN bus, K-line and LIN bus.
The EDICpci provides a flexible vehicle interface for ECU communication, supporting CAN, K‑line, LIN and ISO 9141 protocols. Its PCI card format allows easy connection of a desktop or test bench to vehicle buses in stationary environments, with galvanic isolation and a wide supply voltage range suitable for cars and commercial vehicles.
Technical data includes up to three independent channels (2 CAN + 1 ISO 9141/LIN), six analog inputs, two digital outputs, and a microcontroller (Infineon C167, 40 MHz). The device operates from 8 V to 32 V supplied via the vehicle network and is compatible with Softing software tools such as DTS, EDIABAS and VAS 5163.
| Format | Standard PCI card |
|---|---|
| Power supply | 8 … 32 V via vehicle onboard network |
| Current consumption | 10 mA to 500 mA |
| Microcontroller | Infineon C167, 40 MHz |
| Vehicle interface | D‑Sub 25‑pin, galvanically isolated |
| CAN channels | 2 CAN channels, ISO 11898, CAN 2.0B, 11‑/29‑bit identifier |
| LIN support | LIN master or LIN slave node |
| Analog inputs | 6 inputs, 0‑32 V, 10‑bit, 2 % accuracy |
| Digital outputs | 2 outputs, Open Collector, max 200 mA |
| Operating temperature | 0 °C … +55 °C (operation), –25 °C … +85 °C (storage) |
It can be powered from 8 V to 32 V supplied via the vehicle onboard network.
Windows XP and Windows 7 (from December 2010) are supported.
