Softing Manuals

Key facts

Manuals

13

Models

1

Languages

ZH

Last added

2012-04-06

Softing models by category

Featured Softing manuals

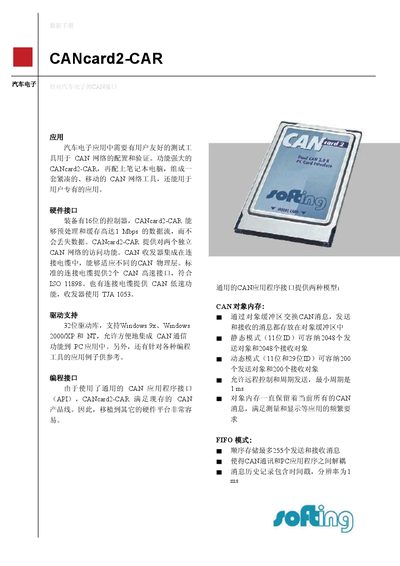

SOFTING CANcaid2-CAR handbook

User Manual 2 pages · 226 KB · ZH

The CANcard2-CAR is a 16‑bit CAN interface card that connects to a PC via PCMCIA. It supports high‑speed (1 Mbps) and low‑speed CAN communication and includes drivers for Windows platforms. The handbook describes the hardware architecture, supported operating systems, and programming interfaces.

The document lists technical specifications such as controller type, memory size, CAN channel count, physical connectors, temperature range, and EMC compliance. It also provides information on the provided DLL/VxD/WDM drivers and contact details for Softing AG. This manual is written in Chinese.

Covers: Hardware Interface · Supported Operating Systems · Driver Interface · CAN API and Memory · Physical Interfaces · Electrical Characteristics

Latest Softing manuals

• softing EDICusb Manual

  EDICusb is a flexible vehicle interface for automotive electronic products, supporting CAN, K-line, LIN bus interfaces and various Softing tools such as DTS, EDIABAS and VAS 5163.

• softing EDICpci Manual

  EDICpci is a PCI interface for vehicle networks, which can easily connect the desktop or test bed to the vehicle bus. It is suitable for heterogeneous on-board networks with CAN bus, K-line and LIN bus.

• softing EDICnet MOST Manual

  EDICnet MOST is a simulator for networking multimedia devices in vehicles. It can be used for ECU simulation and verification. It can be applied to prototyping, concept evaluation, test system and diagnostic router

• softing EDICnet Manual

  EDICnet is a powerful hardware interface from Elektrobit Germany for vehicle networks. It is used in ECU engineering, test, validation, manufacturing and service fields.

• softing EDICflex Manual

  FlexRay is a fast, scalable, and deterministic bus system that enables the realization of innovative, distributed control functions and security-critical applications. Due to its high bandwidth, it is also used as a backbone in vehicle networking. The EDICflex interface is a powerful hardware platform designed to suit the requirements of FlexRay. It communicates with the PC via Fast-Ethernet TCP/IP and can process large amounts of data without any problems due to its powerful microcontroller. The interface is linked to the FlexRay bus via the FlexRay chip Freescale MFR4300. In addition to two FlexRay channels (10 MBit/s), the interface has two CAN channels (ISO 11898-2 HighSpeed and ISO 11898-3 LowSpeed), allowing the acquisition of FlexRay and CAN messages on the same time basis. Four trigger outputs and two trigger inputs are available for combination with external hardware components.

• softing EDICcard2 Manual

  EDICcard2 is a vehicle interface specially used for the automotive industry, which can access multiple ECUs via CAN and ISO 9141 in parallel, suitable for diagnostic and testing applications. The protocol processing in the interface ensures robust time response and allows fast flash programming of the ECUs.

• softing EDICblue Manual

  EDICblue is a wireless vehicle interface that is perfect for use in all areas of ECU communication. It is an efficient, easy-to-use and reasonably-priced interface to the vehicle electronics.

• softing CANusb Manual

  CANusb is a powerful hardware interface perfect for use in accessing onboard CAN bus for various applications. It features easy-to-use Plug&Play functionality, making it particularly useful for mobile operations. In the ECU Engineering, Simulation, Test and Validation sectors, CANusb supports a wide range of communication applications, allowing parallel access to multiple ECUs on one CAN bus, which is particularly important for diagnostic and test applications. The standard CANusb design enables inexpensive access to CAN high-speed networks. CANusb-CAR is equipped with CAN high-speed and CAN low-speed transceivers for use with all kinds of ECUs. Transceiver switching is controlled by software, enabling simple and flexible use even with different applications.

• softing CANcard2-CAR Manual

  CANcard2-CAR is a powerful hardware interface perfect for easy access to the CAN bus in the Engineering, Manufacturing, and Service environment. It is particularly suitable for ECU communication in mobile use.

• softing CAN-PRO2-PCIE Manual

  CAN-AC2-PCI is a powerful vehicle interface that is perfect for use in various applications in engineering, manufacturing and test environments. It enables parallel access to several ECUs on up to two CAN buses simultaneously (important for diagnostic and test applications).

• SOFTING CANcaid2-CAR handbook

  User Manual 2 pages · 226 KB · ZH

  The Softing CANcard2-CAR User Manual provides hardware specs, interface details, driver information, and usage guidelines for the CANcard2-CAR device.

• SOFTING CAN-AC2-PCI handbook

• SOFTING CANusb-CAR handbook

Which document do I need?

Questions answered in Softing manuals
