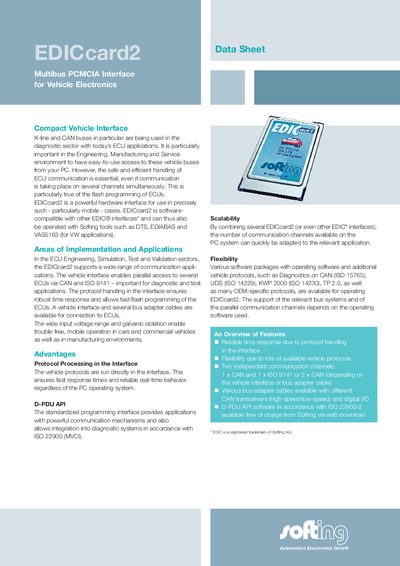

EDICcard2 is a vehicle interface specially used for the automotive industry, which can access multiple ECUs via CAN and ISO 9141 in parallel, suitable for diagnostic and testing applications. The protocol processing in the interface ensures robust time response and allows fast flash programming of the ECUs.
The EDICcard2 is a compact vehicle interface that connects to a PC via a Multibus PCMCIA card. It enables parallel access to multiple ECUs using CAN and ISO 9141‑2 (K‑line) buses, supporting fast flash programming and robust time‑response through on‑board protocol processing.
Technical data include a 5 V power supply from the PC, typical 600 mA current draw, an Infineon C165 microcontroller, 612 kB RAM for operating software, and optional bus‑adapter cables for high‑speed or low‑speed CAN. The device operates from 0 °C to +55 °C and complies with EMC standards EN 55022, EN 61000‑6‑2/‑4, and FCC Part 15.
| Power supply | 5 V (via PC) |
|---|---|
| Current consumption (typical) | 600 mA |
| Microcontroller | Infineon C165 |
| Program/Data memory | 612 kB RAM |
| Vehicle interfaces | 1× CAN + 1× K‑line ISO 9141‑2 or 2× CAN (depending on cable) |
| CAN controller | SJA1000 |
| Operating temperature range | 0 °C … +55 °C |
The device is powered from the PC with a 5 V supply and typically draws 600 mA when the vehicle interface is connected.
The hardware works with Windows XP and Windows 7 (supported from December 2010).
It can operate from 0 °C up to +55 °C.
